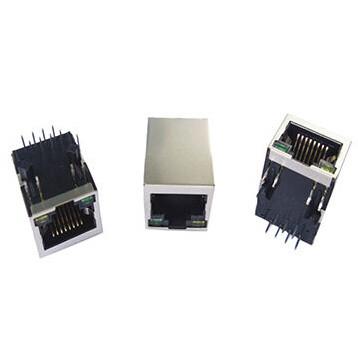

PCB Jack 1- port RJ45 Connector with LED 8 pin Shielded and Through Hole Plug

Brand Name : PHCONN

Model Number : RMS-049D-08H0-GY

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 500 PCS

Price : USD 1.6 ~ 3.0 PCS

Payment Terms : T/T, L/C, D/A, D/P, PAYPAL

Supply Ability : 2,000,000pcs/Month

Delivery Time : 3-30 work days

Packaging Details : 80 pcs in 1 tray,7 tray in 1 small carton, which is 31.5*24*19 CM,2 Small carton in a big carton which is 51*32.5*21 CM 8.6 KGS (1120 pcs) of each big carton

port : Single

plastic : PBT

Led : Yellow , Green , Red , Blue Option

Main Products : RJ45, side entry low profile rj45 jack

Contact Now


PCB Jack 1- port RJ45 Connector with LED 8-pin Shielded and Through Hole Plug


Spectifications

Feature:


1. Complies with IEEE standards and all 10/100 Ethernet specificatons including 350uH with 8MA DC bias
2. Contact:Phosphor Bronze, 6u-inch gold flashed unless specified
3. Housing:Thermoplastic LCP UL94V-0 rated
4. Operating Temperature: 0℃ --70℃
5. Storage temperature: -40℃--85℃


Peak reflow temperature rating 245℃


1. Minimum1500Vrms isolation perIeee 802.3requirement

Electrical Specifications:


1.Turns Ratio: Tx & Rx+1:1±5%
2. Insertion Loss:1-30MHz:-1.0dB Max
3. Return Loss:1-30MHz:-16dB Min; 60-80MHz:12dB Min
4. Common Mode Rejection:1-100MHz:-30dB Min;200MHz:-20dB Min
5. Crosstalk:1-100MHz:-30dB Min
6. OCL:100KHz,0.1V,8MADC:350uH Min
7. Hi-Pot:1500VAC,1mA,1Sec


Lead-free process,compliant RoHS

LED Specification

Standard LED Color: LED Wavelength: Forward (V MAX): Typical (V TYP): Luminous
Green 560-580 nm 2.5V 2.1-2.2V 9-25 MCD
Yellow 580-610 nm 2.5V 2.1-2.2V 9-30MCD
Orange 580-610 nm 2.5V 2.1-2.2V 50-100MCD

Drawing

PCB Jack 1- port RJ45 Connector with LED 8-pin Shielded and Through Hole Plug

PCB Jack 1- port RJ45 Connector with LED 8 pin Shielded and Through Hole Plug

Why Choose PengHui

Quality :

World’s Leader supplier of Integrated RJ45 Connector and PCB connector

Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing , packing .

All the step are doing by ourself. So we can control the quality.

1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)

Unit Price

Charge only 35~60% of Pulse ,(Midcom), Bothhand Belfuse, Tyco, Halo,....Etc

All the step are doing by ourself. So we can control the cost
PHC have more than 30 units automation equipments to product as possible
PHC consists of 3 subordinations , located partly in Hunan ,Hubei ,Guangdong
With large scale of production lines, we can reach to cost reduction at the most extent

Design&Technical strength


We have many more than 20years experience in connector industry engineer can support

your new project.Design a new tooling time:30-45 workdays

Production&Testing

PHC have more than 30 units automation equipments to product as possible
PHC Every Magnetic RJ45 tested 3times (not just batch tested)
PHC Every SMT part used Automation testing and packing.


Lead Time

With large Popularity of 450 Workers distributed in 4 subsidiary corporations, PHC can offer the

fastest Lead time,and the particular case is according to the situation.

Case.1

Stock

25%

Case.2

3-4 Weeks

70%

Case.3

5-6 Weeks

5%



Service

PHC Offer good pre-sales & after-sales service &Strong technical support

1. New Project: Strong technical and ideal support your new design

2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

3. time.

4. Free Samples:3-5 PCS of each part number

5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

6. Customer complaint:24-48 hours reply 8D report

7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,or repair

kits if customers are not satisfied)



Wish To Be Your Best Supplier and Supporter In Your Lan connector Solutions
